Leanflow works closely with HIK to provide a solution for your automated warehouse management! Smart internal logistics.
DIFFERENT TYPES
MULTIPLE CERTIFICATES
GREAT FLEXIBILITY
MULTIPLE APPLICATIONS
FULL RANGE SECURITY
LMR Robot
Characterised by its lifting mechanism, the LMR (Latent Mobile Robot) offers optimised movement performance and improved safety protection. It helps customers create a safer working environment and make productivity more cost-efficient.
60
Lifting Height (mm)
400
Rated Load (kg)
QR code/Visual SLAM/Laser SLAM
Navigation
93
Weight (kg)
820
Rotation Diameter (mm)
8
Run time (h)
| Dimensions L*W*H (mm) | 780*545*300 |
| Rated Speed | (m/s)2.0 |
| Max. Rotation Speed | (°/s)200 |
| Position Accuracy | (mm)±10,±1 |
| Charging Time | (h)1.5 |
| Driving Mode | Differential Drive |
60
Lifting Height (mm)
600
Rated Load (kg)
QR code/L-SLAM/V-SLAM
Navigation
132
Weight (kg)
995
Rotation Diameter (mm)
8
Run time (h)
| Dimensions L*W*H (mm) | 950*650*250 |
| Nominale snelheid (m/s) | 2.0 |
| Max. rotatiesnelheid (°/s) | 200 |
| Positienauwkeurigheid (mm) | ±10,±1 |
| Laadtijd (h) | 1.5 |
| Rijmodus | Differential Drive |
60
Lifting Height (mm)
1000
Rated Load (kg)
QR code/L-SLAM/V-SLAM
Navigation
185
Weight (kg)
1200
Rotation Diameter (mm)
8
Run time (h)
| Dimensions L*W*H (mm) | 1150*820*256 |
| Nominale snelheid (m/s) | 2.0 |
| Max. rotatiesnelheid (°/s) | 200 |
| Positienauwkeurigheid (mm) | ±10,±1 |
| Laadtijd (h) | 1.5 |
| Rijmodus | Differential Drive |
60
Lifting Height (mm)
1500
Rated Load (kg)
QR code/V-SLAM
Navigation
285
Weight (kg)
1265
Rotation Diameter (mm)
8
Run time (h)
| Dimensions L*W*H (mm) | 1180*860*265 |
| Rated Speed (m/s) | 1.5 |
| Max. Rotation Speed (°/s) | 120 |
| Position Accuracy (mm) | ±10 |
| Charging Time (h) | ≤2 |
| Rijmodus | Differential Drive |
100
Lifting Height (mm)
2000
Rated Load (kg)
QR code/L-SLAM/V-SLAM
Navigation
550
Weight (kg)
1780
Rotation Diameter (mm)
8
Run time (h)
| Dimensions L*W*H (mm) | 1523*1150*327 |
| Rated Speed (m/s) | 1.5 |
| Max. Rotation Speed (°/s) | 90 |
| Positienauwkeurigheid (mm) | ±10,±1 |
| Laadtijd (h) | 1.5 |
| Rijmodus | Differential Drive |
TESTED & SAFE
GREAT FLEXIBILITY
ADJUSTABLE
GREAT EFFICIENCY

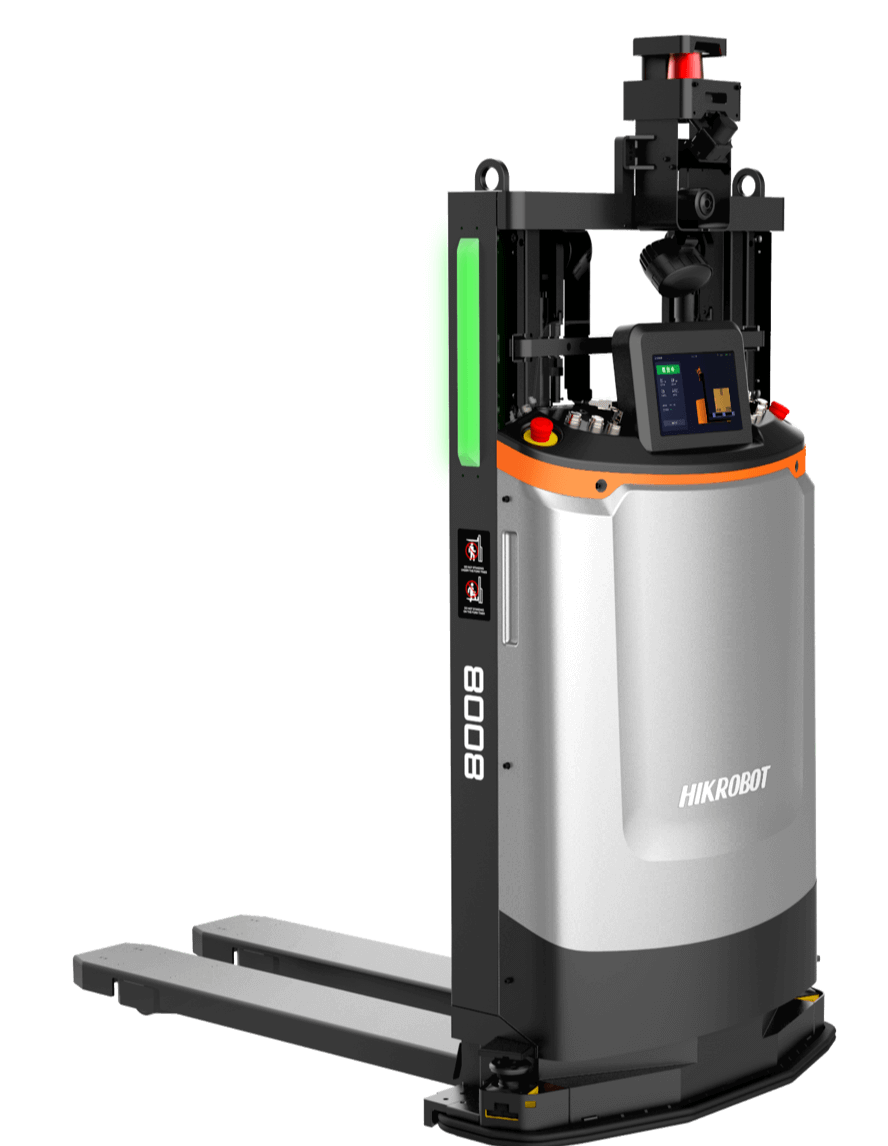

FMR Robot
FMR focuses on the automatic transport of standard containers/pallets. It uses highly accurate laser SLAM navigation, visual navigation, etc.
1500
Rated Load (kg)
200
Max Lifting Height (mm)
2.1
Min. Aisle Widht (m)
25/25
Lifting Speed (loaded/no-load) (mm/s)
Laser SLAM
Navigation
Steering wheel driving
Movement Mode
| Dimensions L*W*H (mm) | 1632*870*1990 |
| Rated Speed (m/s) | 1.5 |
| Safety Protection | Laser + physical obstacle avoidance |
| Position Accuracy (mm,°) | ±10,±1 |
| Charging Time (h) | ≤2 |
| Run time (h) | 6-8 |
1000
Rated Load (kg)
2031
Max Lifting Height (mm)
2.052
Min. Aisle Widht (m)
100/135
Lifting Speed (loaded/no-load) (mm/s)
Laser SLAM
Navigation
Steering wheel driving
Movement Mode
| Dimensions L*W*H (mm) | 1640*990*1990 |
| Rated Speed (m/s) | 1.2 |
| Safety Protection | Laser + physical obstacle avoidance |
| Position Accuracy (mm,°) | ±10,±1 |
| Charging Time (h) | ≤2 |
| Run time (h) | 6-8 |
1600
Rated Load (kg)
3000
Max Lifting Height (mm)
2.7
Min. Aisle Widht (m)
120/150
Lifting Speed (loaded/no-load) (mm/s)
Laser SLAM
Navigation
Steering wheel driving
Movement Mode
| Dimensions L*W*H (mm) | 2288*1200*2219 |
| Rated Speed (m/s) | 1.5 |
| Safety Protection | Laser + physical obstacle avoidance |
| Position Accuracy (mm,°) | ±10,±1 |
| Charging Time (h) | 2 |
| Run time (h) | 6-8 |
DOUBLE SIDES
HIGH LIFT DISTANCE
FLEXIBLE CARGO SELECTION
CARGO INSPECTION

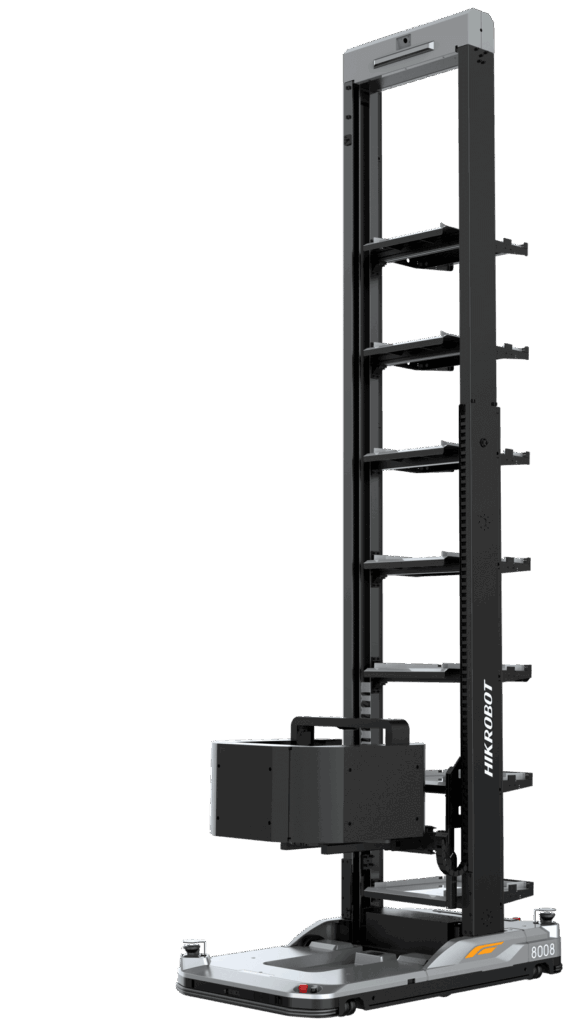

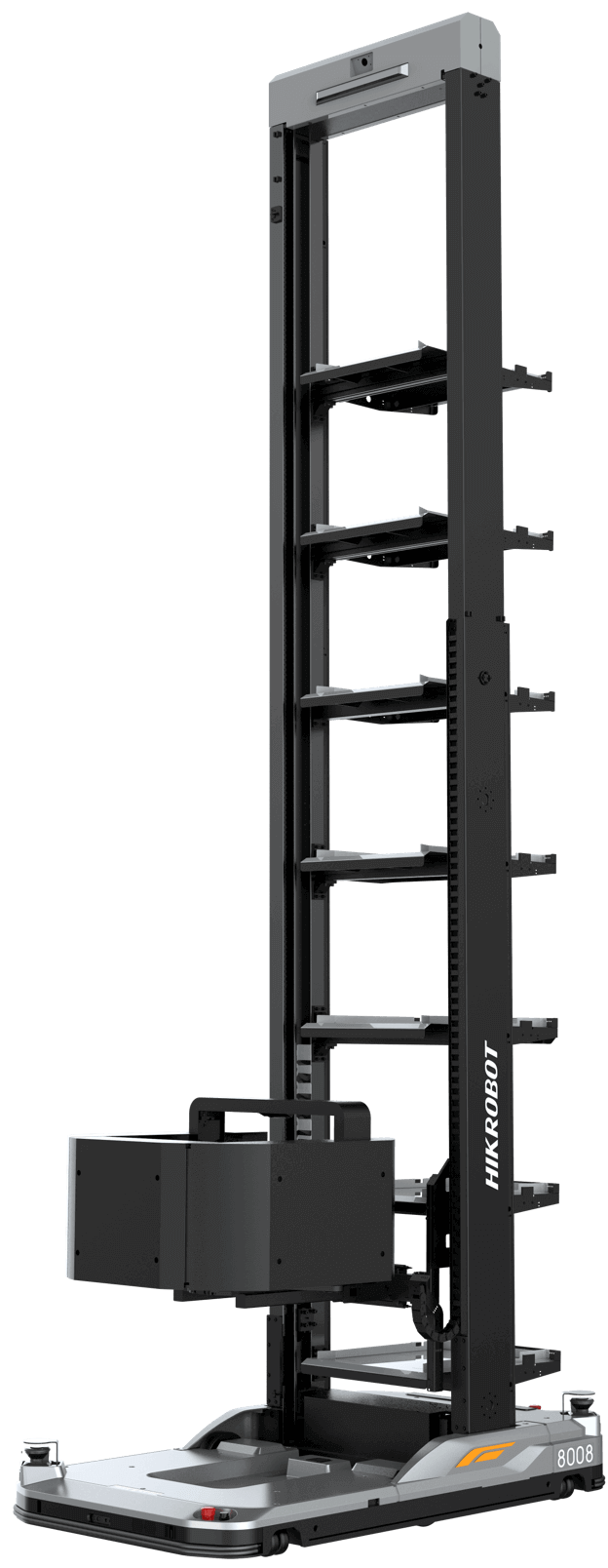

CTU Robot
CTU (Carton Transfer Unit) is an automated, unmanned robot for order picking and handling. It can move multiple goods simultaneously, which increases picking efficiency and storage capacity.
250
Rated Load (kg)
5
Bin Number
1000
Aisle Width (mm)
500
Max. Lifting Speed (mm/s)
±10,±1
Positioning Accuracy (mm,°)
280~2087
Docking Height (mm)
| Dimensions L*W*H (mm) | 1730*850*2600 |
| Rated Speed (m/s) | 1.5 |
| Wieght (with battery) (kg) | 605 |
| Adaptable Tote Dimension (mm) | (200-620)*(200-450)*(120-360) |
| Charging Time (h) | ≤2 |
| Run Time (h) | 6~8 |
250
Rated Load (kg)
7
Bin Number
1100
Aisle Width (mm)
500
Max. Lifting Speed (mm/s)
±10,±1
Positioning Accuracy (mm,°)
270~4000
Docking Height (mm)
| Dimensions L*W*H (mm) | 1730*950*4565 |
| Rated Speed (m/s) | 1.8 |
| Weight (with battery) (kg) | 720 |
| Adaptable Tote Dimension (mm) | 600*400*(120~420) |
| Charging Time (h) | ≤2 |
| Run time (h) | 6~8 |
CMR Robot
With self-developed, multi-stage lifting components, the Hikrobot CMR/HMR series (Conveyor/Heavy-duty Mobile Robot) can meet the automatic docking requirements in a wide range of scenarios.
200
Rated Load (kg)
1.2
Rated Speed (m/s)
SLAM
Navigation
0.5
Rated Acceleration (m/s²)
1415
Rotation Diameter (mm)
360° Laser+Auxiliary protection
Obstacle Avoidance
| Dimensions L*W*H (mm) | 1250*745*935 |
| Transferred Method | Rollers|
| Weight (kg) | 350 |
| Angular Accuracy (°) | ±1 |
| Positioneringsnauwkeurigheid (mm) | ±10 |
| Run time (u) | 8 |
4*100
Rated Load (kg)
1.2
Rated Speed (m/s)
SLAM/QR code
Navigation
0.5
Rated Acceleration (m/s²)
1415
Rotation Diameter (mm)
360° Laser+Auxiliary protection
Obstacle Avoidance
| Dimensions L*W*H (mm) | 1250*745*1175 |
| Transferred Method | Rollers |
| Weight (kg) | 410 |
| Angular Accuracy (°) | ±1 |
| Positioneringsnauwkeurigheid (mm) | ±10 |
| Run time (u) | 8 |
1000
Rated Load (kg)
1.0
Rated Speed (m/s)
Laser SLAM + 2D barcode
Navigation
0.4
Rated Acceleration (m/s²)
2000
Rotation Diameter (mm)
Laser
Obstacle Avoidance
| Dimensions L*W*H (mm) | 1615*470*285 |
| Transferred Method | Tractie |
| Wieght (kg) | 240 |
| Angular Accuracy (°) | ±1 |
2000
Rated Load (kg)
1.2
Rated Speed (m/s)
SLAM/QR code
Navigation
0.5
Rated Acceleration (m/s²)
Omni-directional
Driving Mode
360° Laser obstacle avoidance
Obstacle Avoidance
| Dimension L*W*H (mm) | 1900*1200*370 |
| Transferred Method | Lifting |
| Weight (kg) | 800 |
| Angular Accuracy (°) | ±1 |
| Positioning Accuracy (mm) | ±10 |
| Run time (u) | 8 |
3000
Rated Load (kg)
1.2
Rated Speed (m/s)
QR code
Navigation
0.5
Rated Acceleration (m/s²)
Omni-directional
Driving Mode
360° Laser obstacle avoidance
Obstacle Avoidance
| Dimension L*W*H (mm) | 2000*1400*480 |
| Transferred Method | Lifting |
| Weight (kg) | 900 |
| Angular Accuracy (°) | ±1 |
| Positioneringsnauwkeurigheid (mm) | ±10 |
| Run time (u) | 8 |
